The MIDI DJ Controller is a device used in controlling a
DJ software like Mixxx. This particular device uses arduino
as the main controller.
Below are some photos on how the prototype of MIDI DJ Controller was created

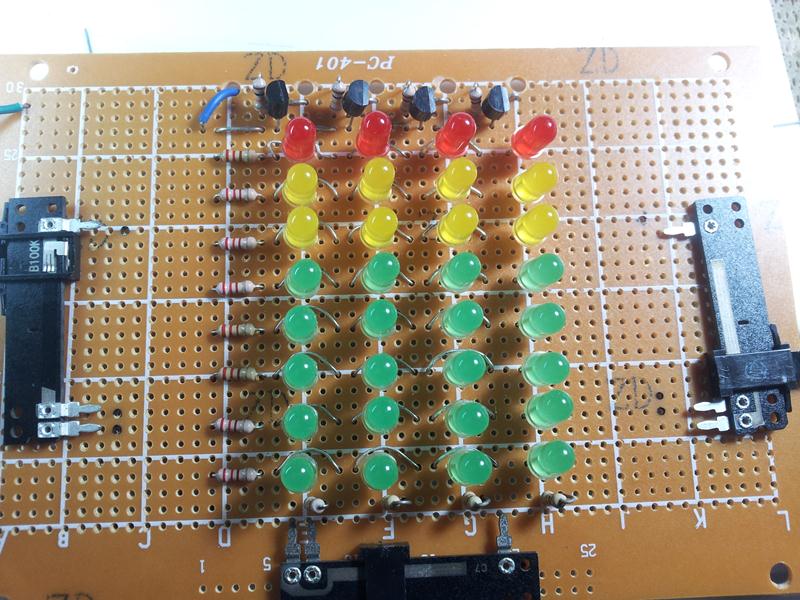

VU Meter Module
This is the VU Meter Module that displays the power level of
Deck 1 (left), Deck 2 (Right), and Master Left, Master Right (2 middle).
It uses multiplexing technique to cover 4 channels with 8 level of
accuracy per channel.

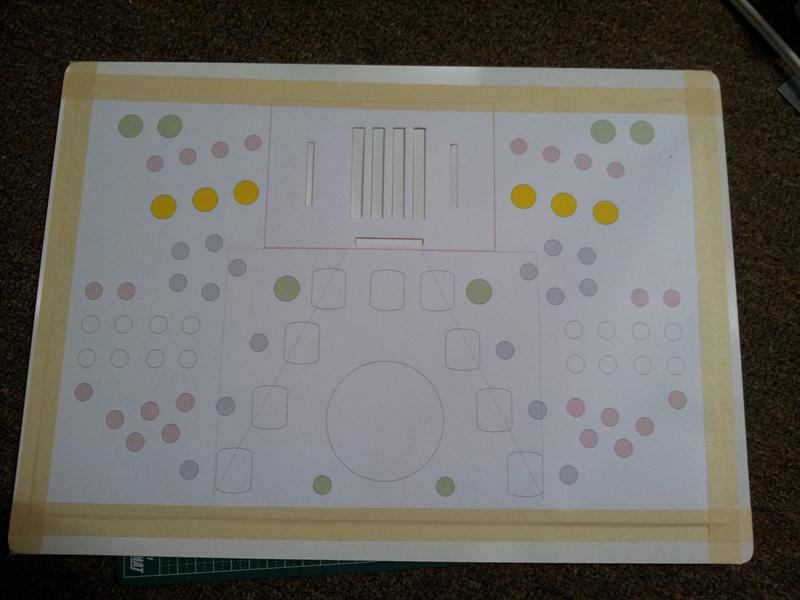

Template used for the construction of the panel.

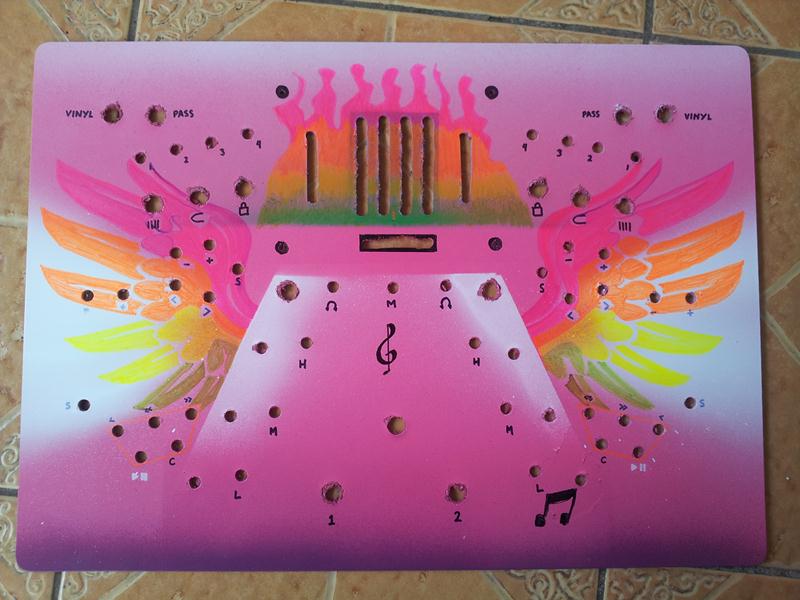

Panel before mounting the components.

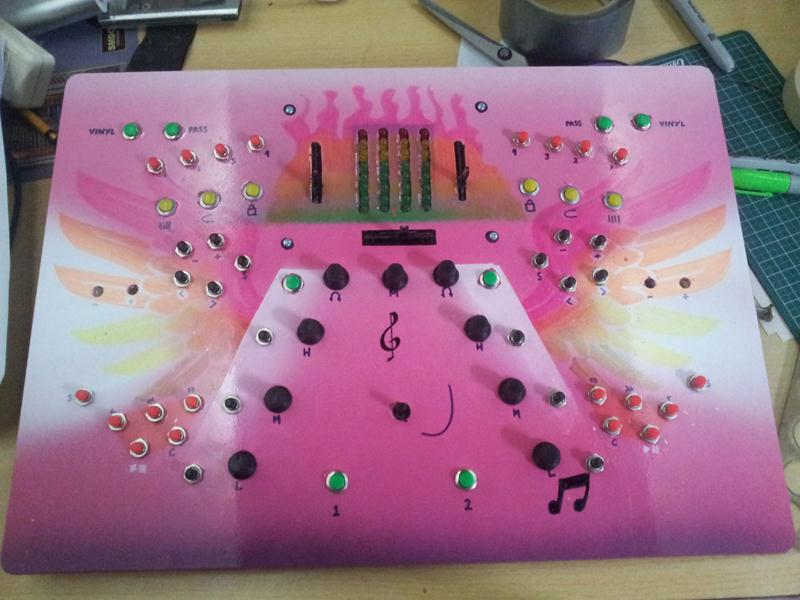

Panel with buttons
Panel with components mounted.

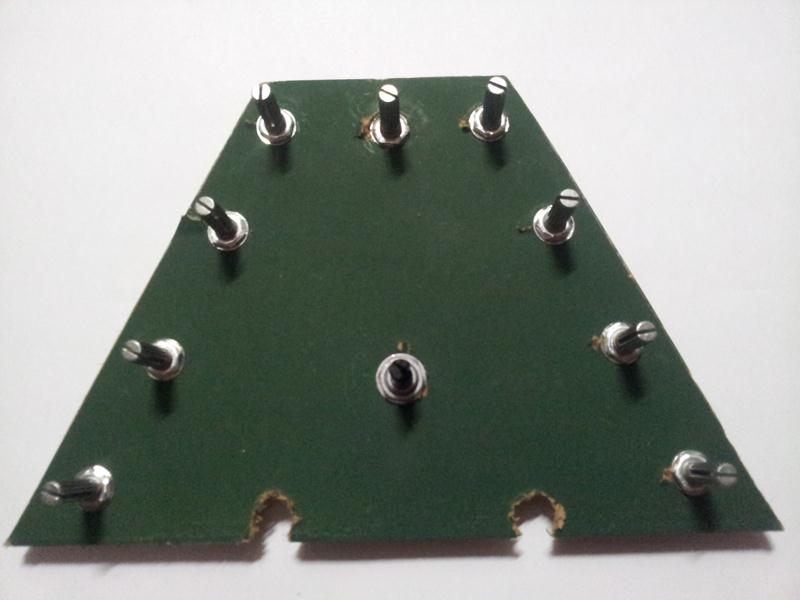

Inner panel that supports the potentiometers mounted
under the main panel.
